MINI series I/O - Modbus/RS485 Modbus/TCP BACnet/MSTP BACnet/IP
The product group of I/O modules MINI series has been designed to complement the I/O modules of the MIX series. Unlike the MIX series, the MINI line is dedicated to all the applications where hand operating switches are required. Also, the MINI line products’ light-controlling algorithm makes them applicable as lighting controllers. Very much like in case of the MIX modules, the modules are factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. There are two versions of the modules, namely: modules with interface RS485, and modules with interfaces 1x Ethernet and RS485. Devices with interfaces 1x Ethernet and RS485 have the added functionality of "Modbus Gateway TCP/IP to Modbus ASCII/RTU", enabling you to connect additional modules / devices that communicate via Modbus RS485.8I
MINI series 8I module has got on board 1xRS485 interface and 8DI - Digital Input: volt free contact, fast pulse counter up to 100Hz with EEPROM memory. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.

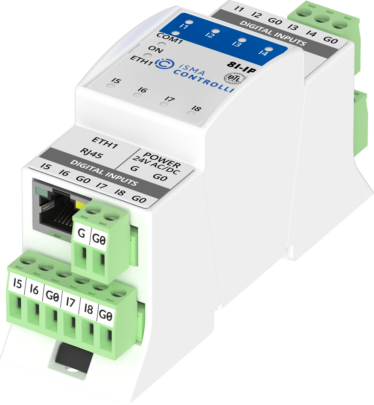

8I-IP
MINI series 8I-IP module has got on board 1xEthernet interface, 1xRS485 interface and 8DI - Digital Input: volt free contact, fast pulse counter up to 100Hz with EEPROM memory. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.

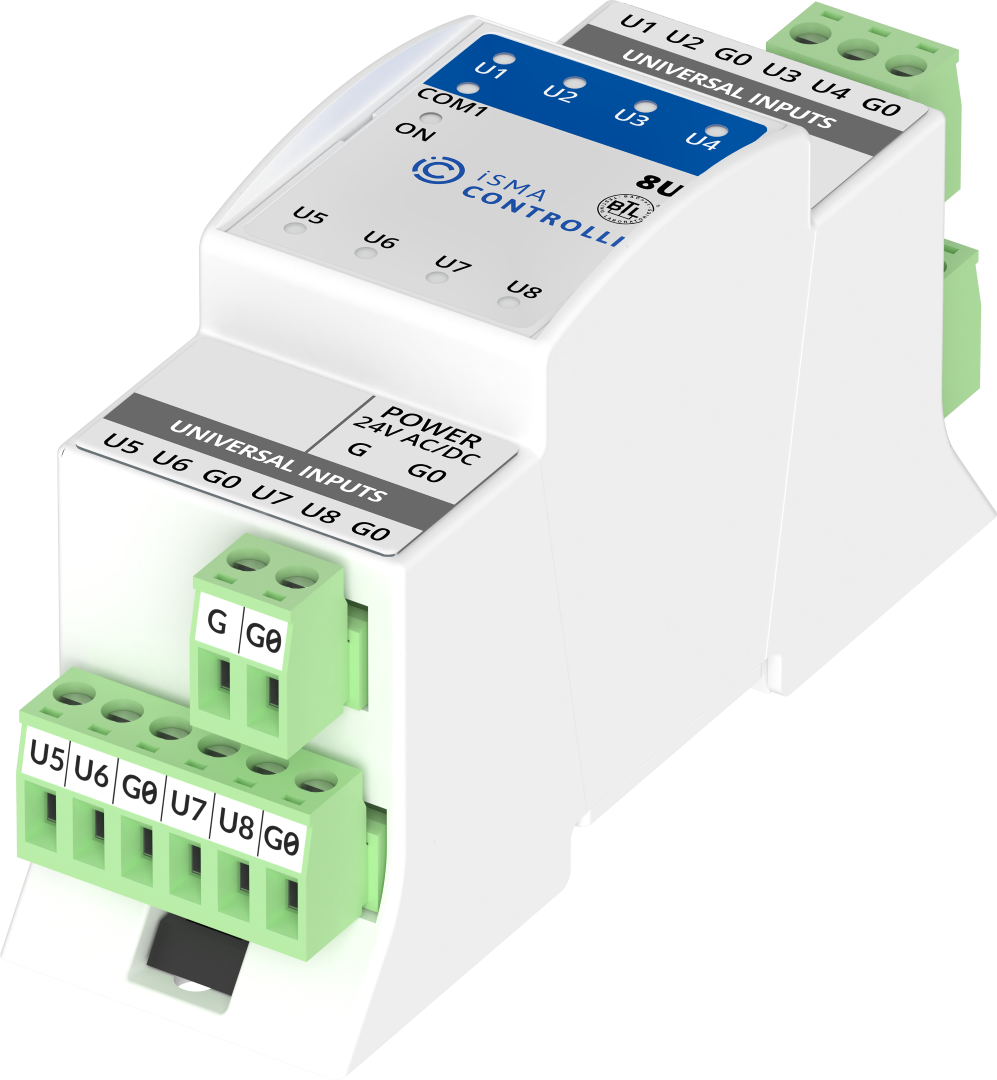

8U
MINI series 8U module has got on board 1xRS485 interface and 8UI- Universal input: 0-10V voltage, resistance and volt free contact. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.
8U-IP
MINI series 8U-IP module has got on board 1xEthernet interface, 1xRS485 interface and 8UI - Universal input: 0-10V voltage, resistance and volt free contact. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.
4U4A-H
MINI series 4U4A-H module has got on board 1xRS485 interface and 4UI- Universal input: 0-10V voltage, resistance and volt free contact, 4AO- 0-10 VDC max. load 20mA. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.

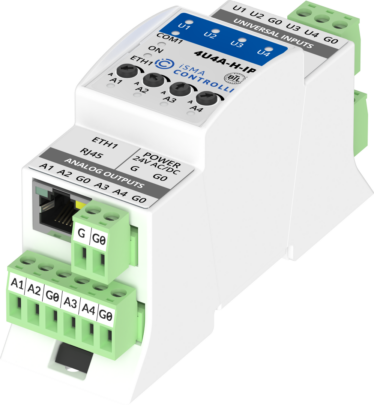

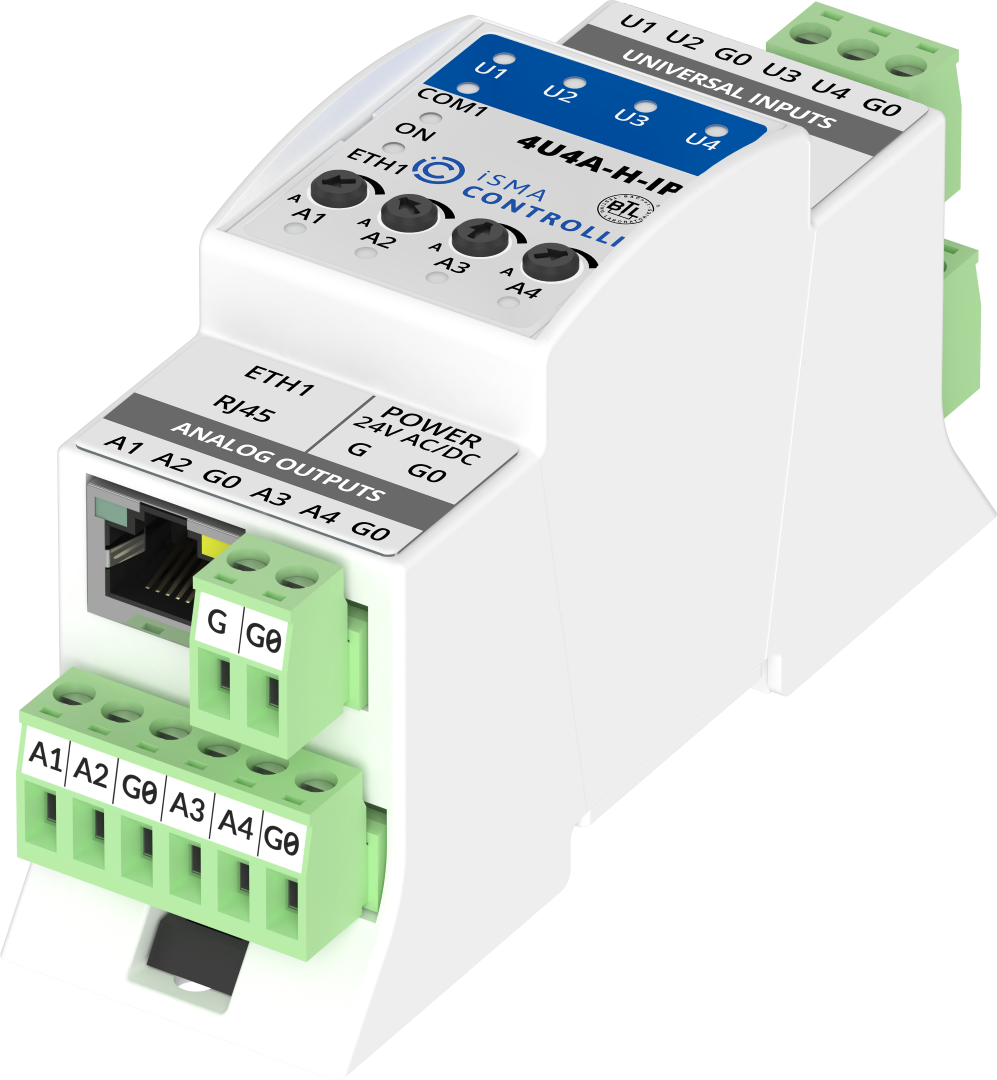

4U4A-H-IP
MINI series 4U4A-H-IP module has got on board 1xEthernet interface, 1xRS485 interface and 4UI - Universal input: 0-10V voltage, resistance and volt free contact,4AO - 0-10 VDC max. load 20mA. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.

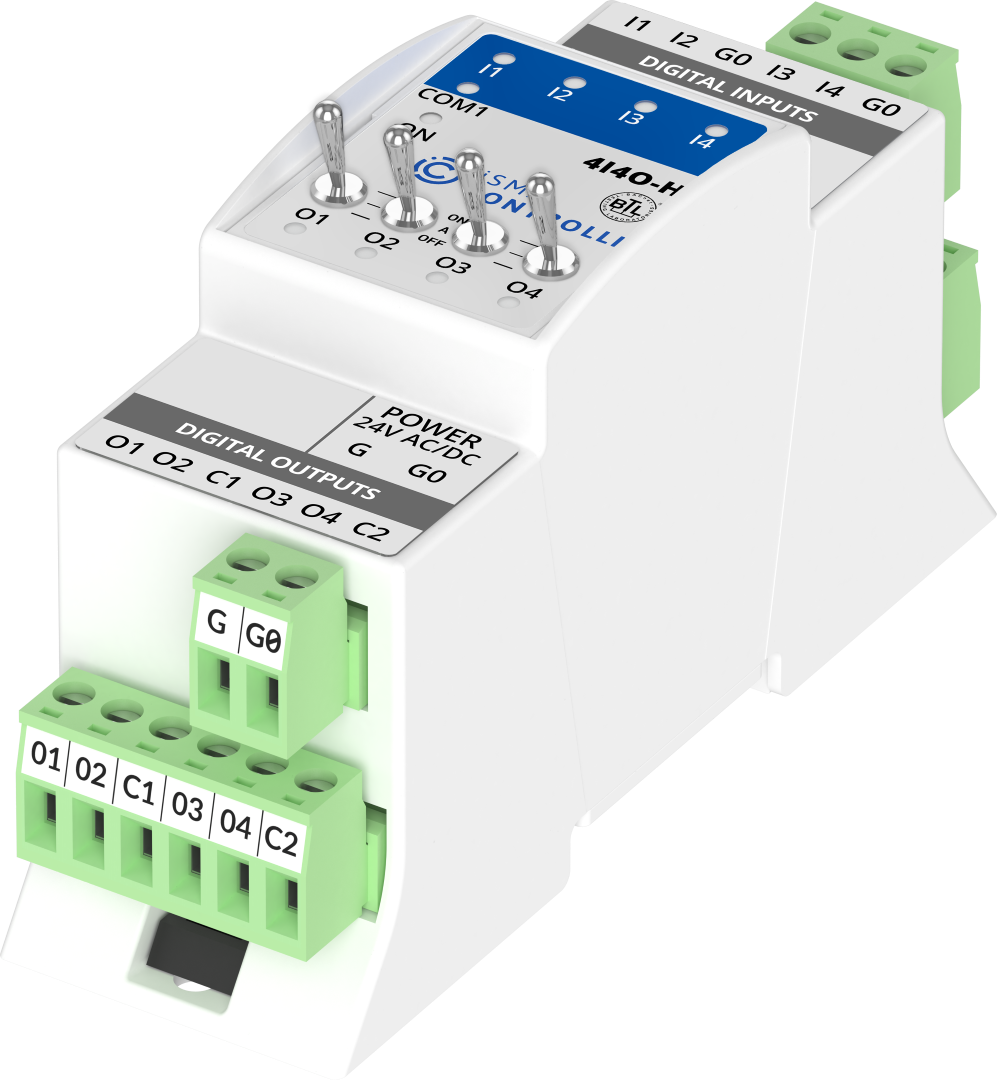

4I4O-H
MINI series 4I4O-H module has got on board 1xRS485 interface and 4DI - Digital Input: volt free contact, fast pulse counter up to 100Hz with EEPROM memory, 4DO - Digital Outputs relay 230V AC, 3A max. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.
4I4O-H-IP
MINI series 4I4O-H-IP module has got on board 1xEthernet interface, 1xRS485 interface and 4DI - Digital Input: volt free contact, fast pulse counter up to 100Hz with EEPROM memory, 4DO - Digital Outputs relay 230V AC, 3A max. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.
4U4O-H
MINI series 4U4O-H module has got on board 1xRS485 interface and 4UI - Universal input: 0-10V voltage, resistance and volt free contact, 4DO - Digital Outputs relay 230V AC, 3A max. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.

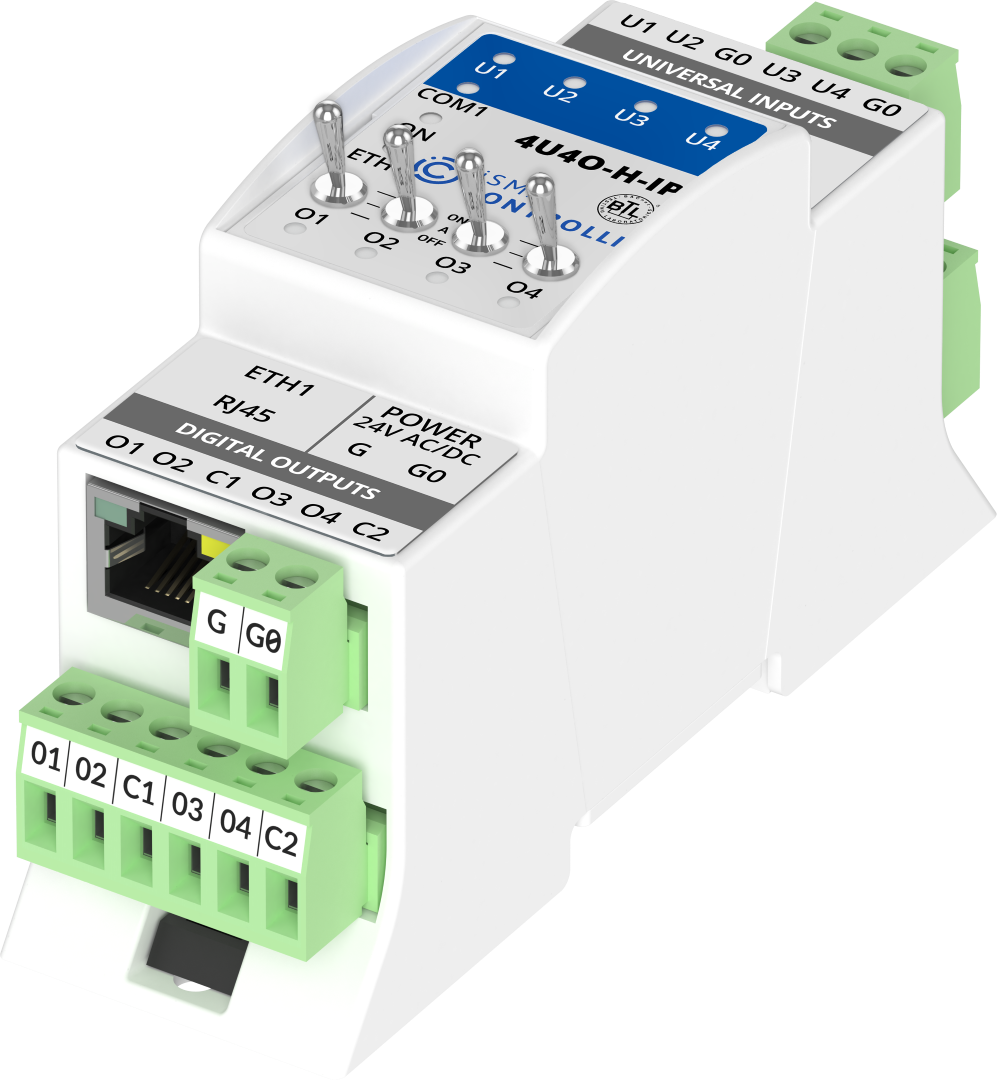

4U4O-H-IP
MINI series 4U4O-H-IP module has got on board 1xEthernet interface, 1xRS485 interface and 4UI - Universal input: 0-10V voltage, resistance and volt free contact,4DO - Digital Outputs relay 230V AC, 3A max. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.
4O-H
MINI series 4O-H module has got on board 1xRS485 interface and 4DO - Digital Outputs relay 230V AC, 8A max. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.
4O-H-IP
MINI series 4O-H-IP module has got on board 1xEthernet interface, 1xRS485 interface and 4DO - Digital Outputs relay 230V AC, 8A max. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.
4TO-H
MINI series 4TO-H module has got on board 1xRS485 interface and 4 triac Outputs Continuous load per channel: 0.5 A (1.5 A peak 30 s)
Switching Voltage: 20 to 250 V ACInterface. The module is factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU) and BACnet (MSTP), which are selected using DIP switches.

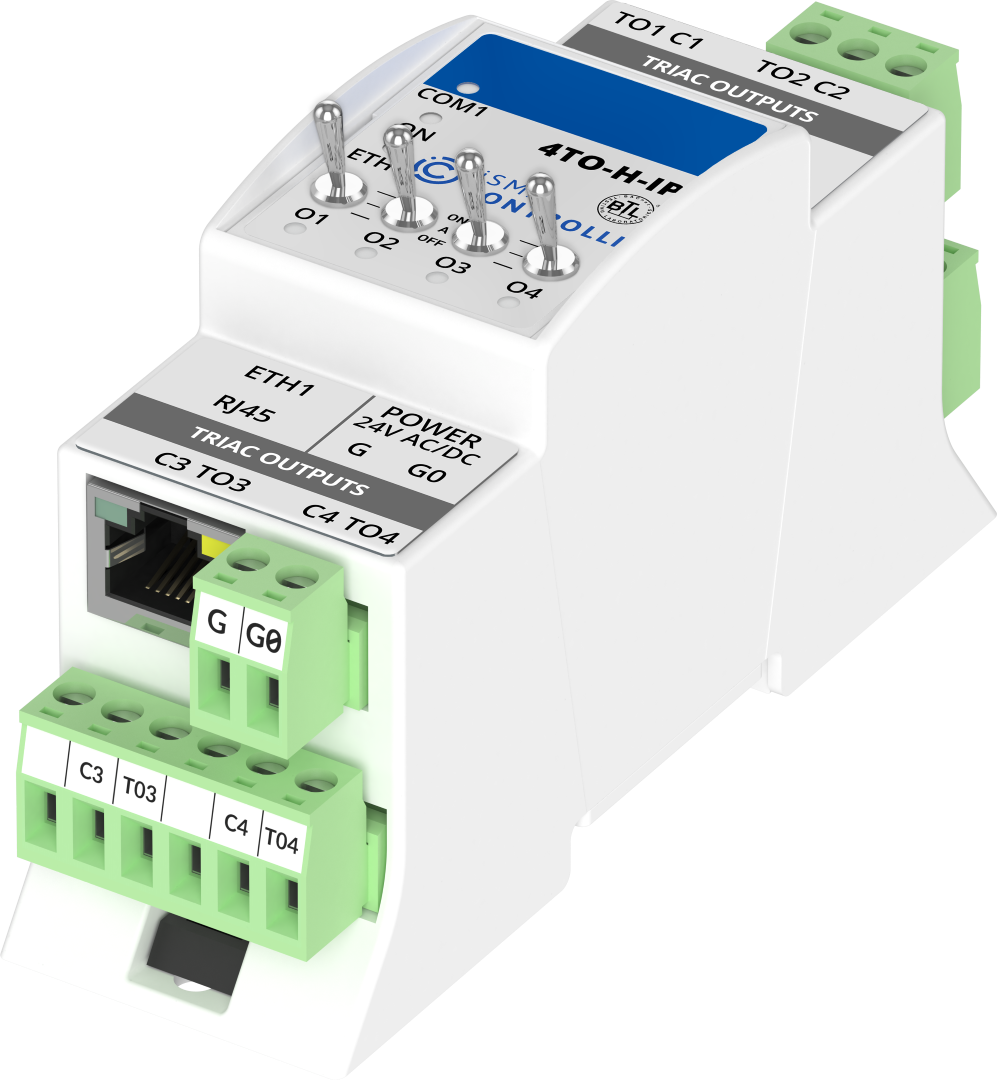

4TO-H-IP
MINI series 4O-H-IP module has got on board 1xEthernet interface, 1xRS485 interface and 4 triac output;Continuous load per channel: 0.5 A (1.5 A peak 30 s)Switching Voltage: 20 to 250 V AC. The module is factory-equipped with the two most popular open communication protocols: Modbus TCP/IP with built in Modbus Gateway to RS485 and BACnet IP, which are selected using DIP switches.
